XSF 20.5-inch Bolt Plate Utility Triangle Truss

XSF 20.5-inch Bolt Plate Utility Triangle Truss

$620.00
 - $1,006.00
$0.00 /
Subscription

Select an option to add this to your cart

This Product Requires Freight Shipping - Please Request a Quote for a Shipping Estimate

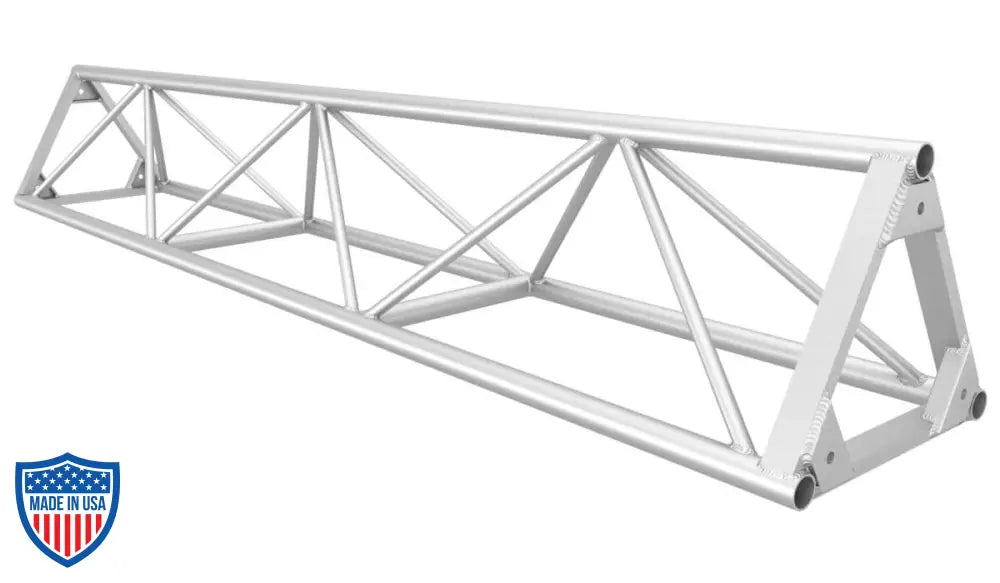

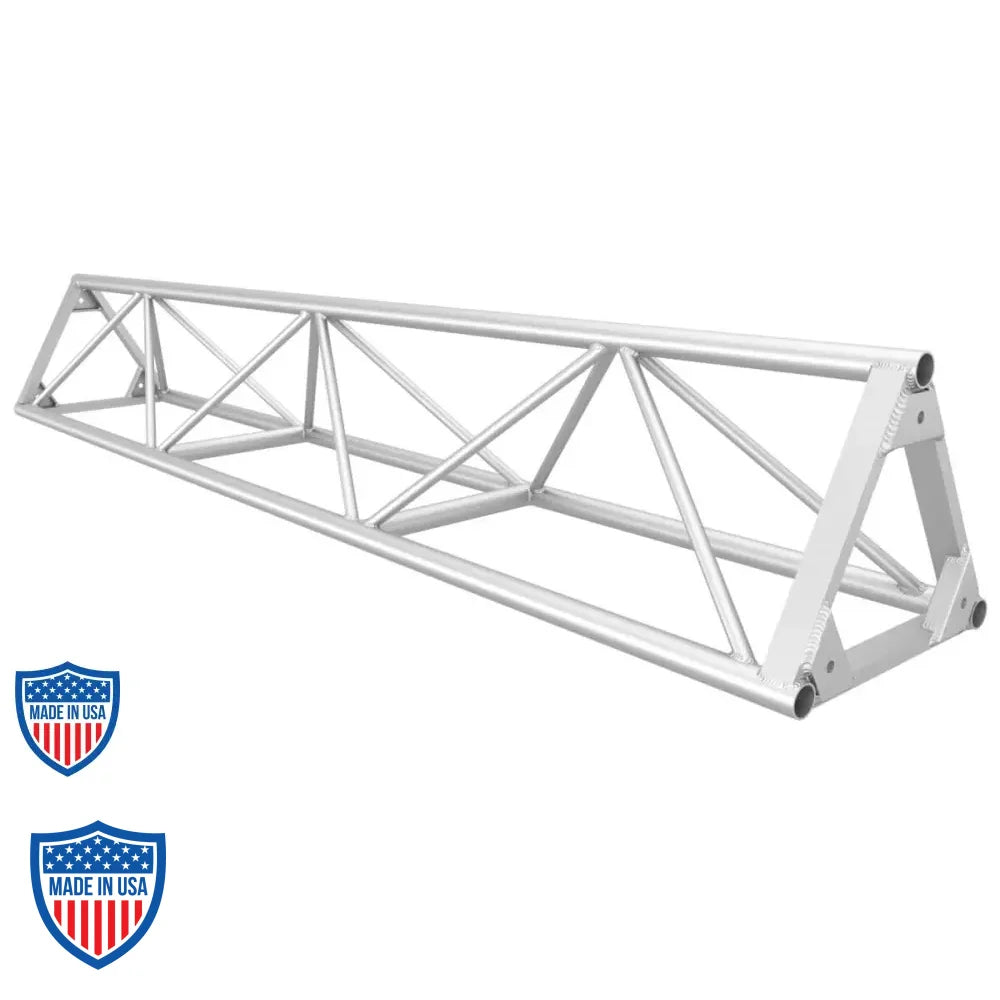

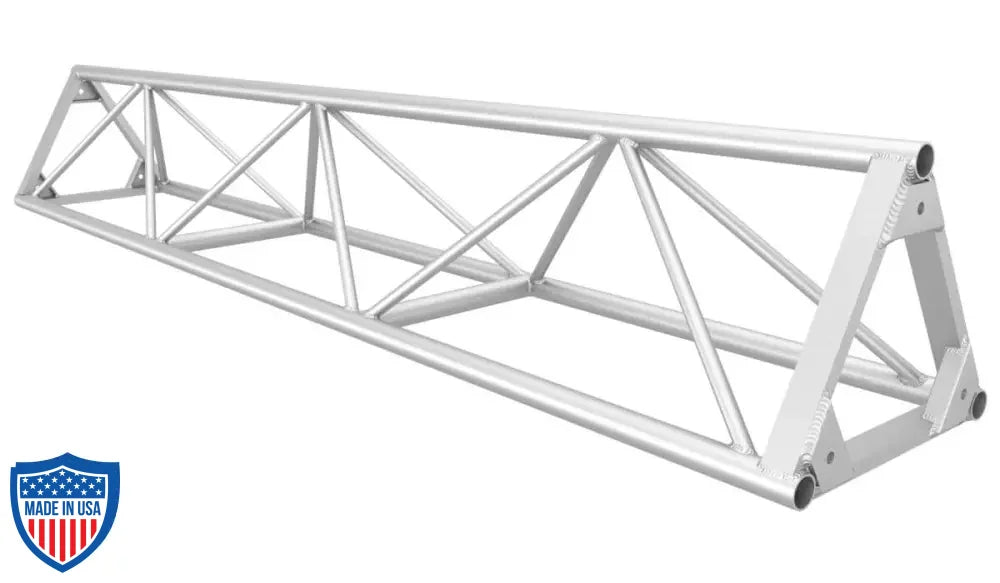

20.5" Bolt Plate Utility Triangle Truss comes in standard lengths of 2', 2.5', 3', 4', 5', 6', 7', 8-foot, and 10-foot with custom lengths available upon request

The chords are 1-1/2-inch diameter x 1/8” wall thickness.

The diagonals are 7/16” diameter solid rod

The truss is connected using standard 5/8-inch diameter steel bolts

Fabricated by AWS certified welders in the USA.

Powder Coating available upon request in most colors.

Anodizing available upon request in select colors.
