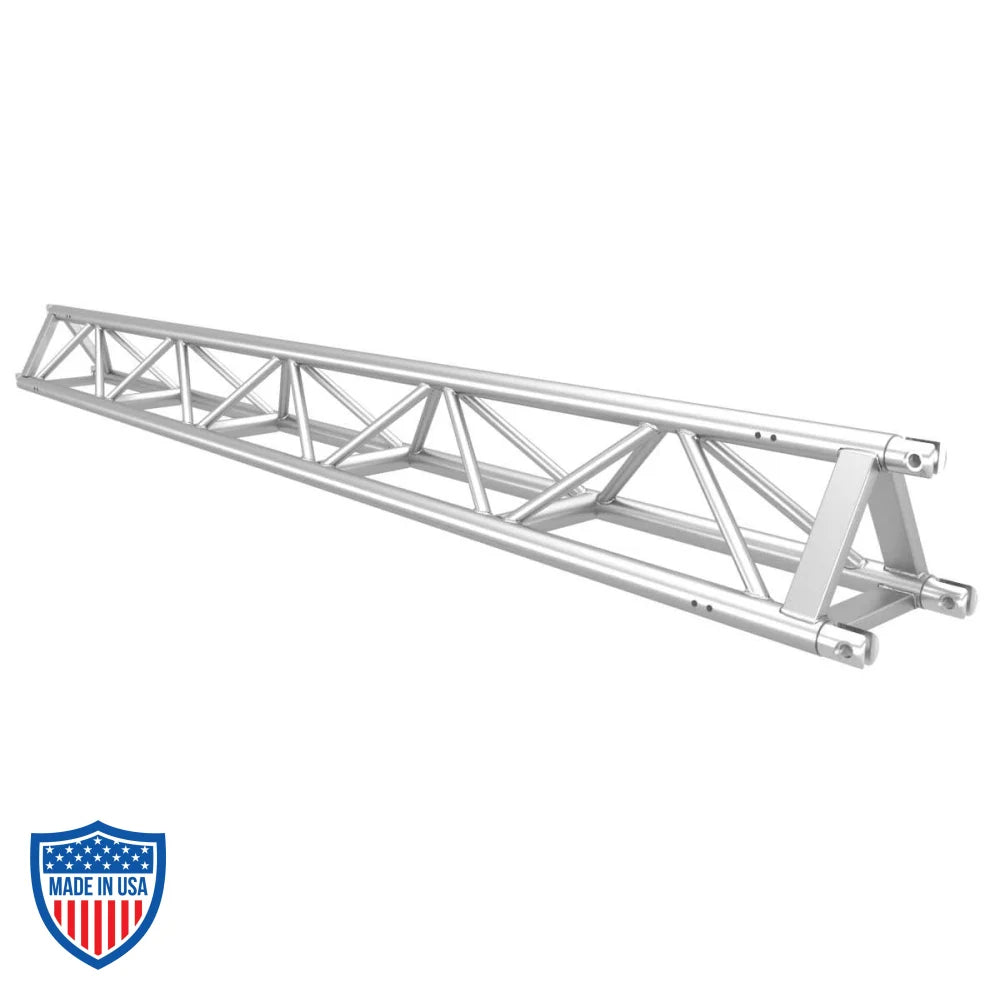

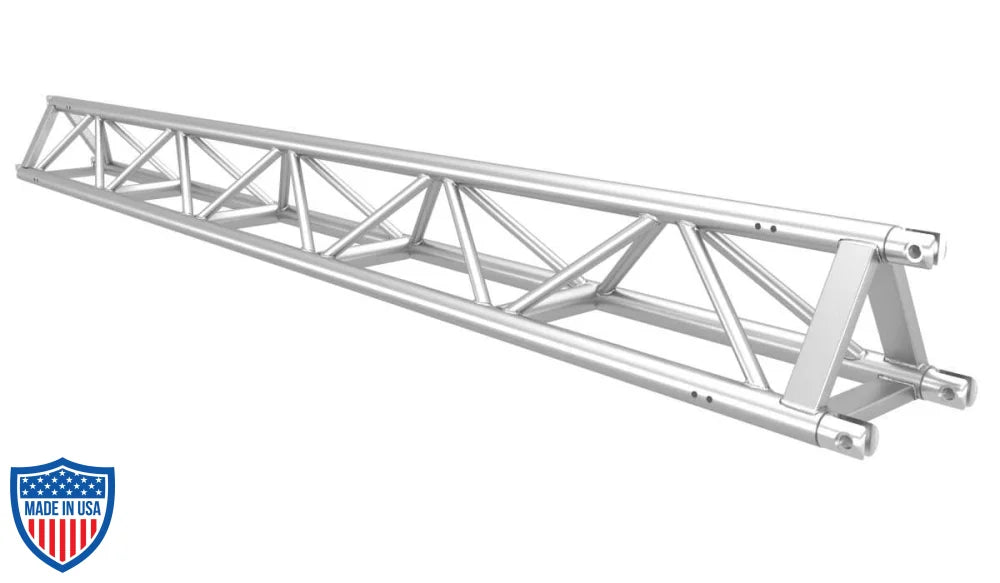

20.5-inch Aluminum Utility Triangular Truss with Steel Fork End Connections comes in standard lengths of 5-foot, 8-foot, and 10-foot with custom lengths available upon request.
The aluminum chords are 2-inch OD x 3/16-inch thick with 1-inch OD x 1/8-inch thick aluminum diagonals.
The trusses are joined together with 3/4-inch steel clevis pins through 2-inch OD steel fork end connections.
Fabricated by AWS certified welders in the USA.
Powder Coating available upon request in most colors.
Anodizing available upon request in select colors.
