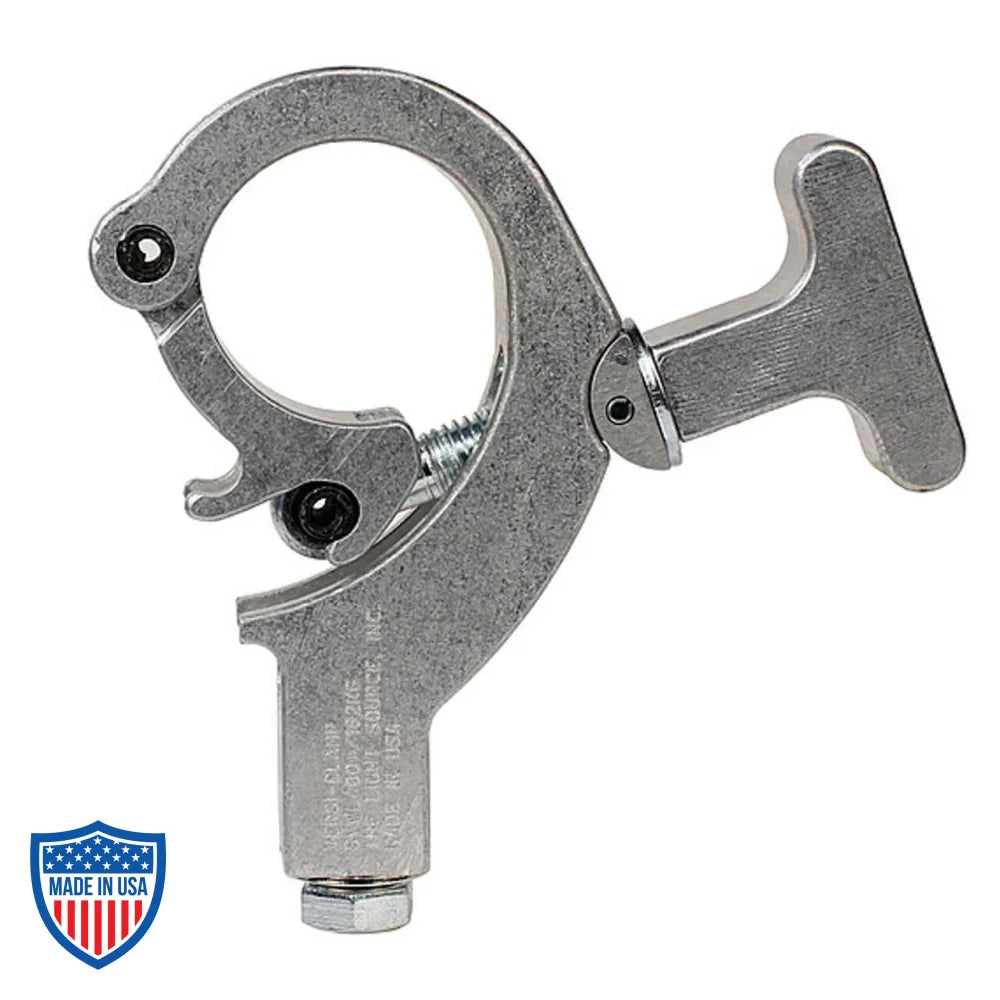

The Versi-Clamp wraps around the entire range of standard truss, from 2" OD down to 1" OD, all without marring the truss. The unique 2-position latch on the link saves time when switching from 2" truss to a small truss, just connect to the second latch for the smaller sizes. The quick release handle takes only 2 turns to be able to drop the locking mechanism, and release the clamp from the truss.
- Minimum Size
-
1" tubing, 3/4" pipe, 1.050" OD pipe
- Maximum Size
-
2" OD truss tube,1.5" pipe, 1.90" OD pipe
- Working Load Limit
-
400 Pounds
- Hardware
-
.5-inch × 1-inch Hex Head Cap Screw
1" Belleville Washer
- Weight
-
1.2
