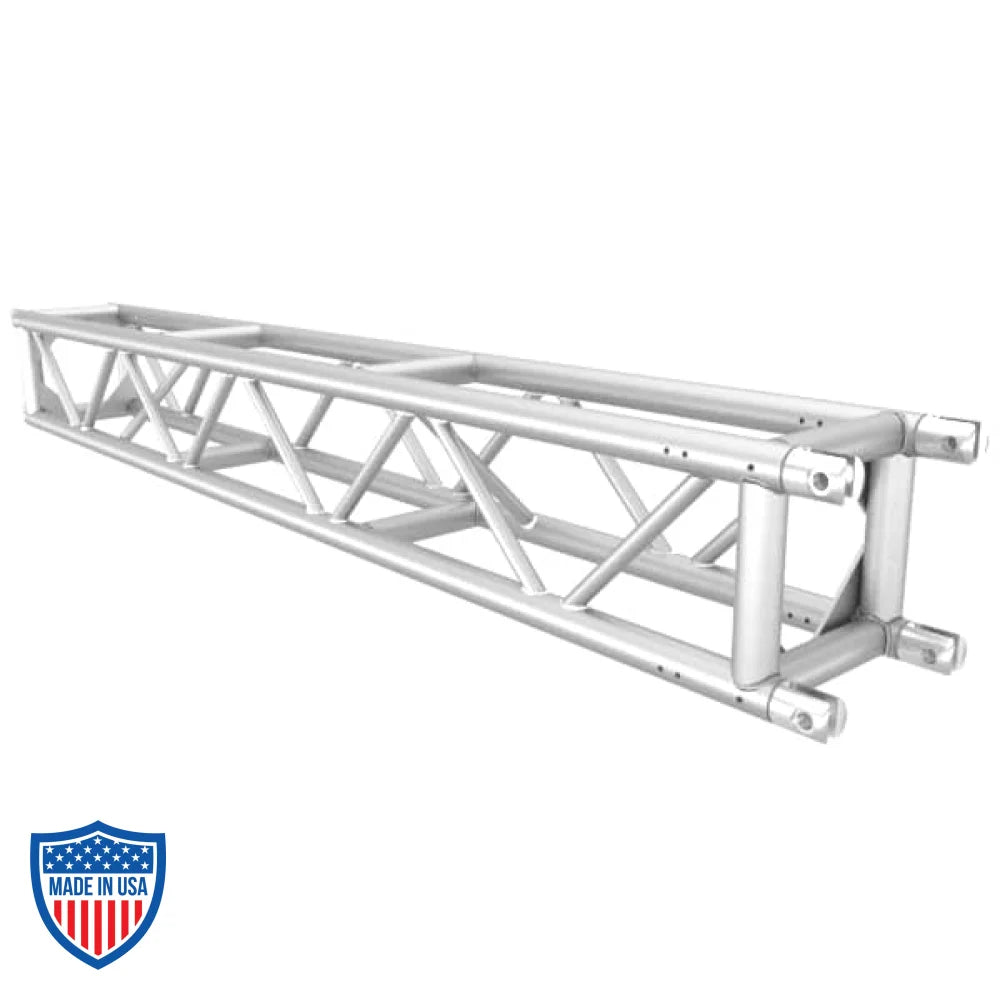

12-inchx 12-inch Aluminum Utility Truss with Steel Fork End Connections comes in standard lengths of 2', 2.5', 3', 4', 5', 6', 7', 8', 9', and 10' with custom lengths available upon request.
The aluminum chords are 2-inch OD x 3/16-inch thick with 1-inch OD x 1/8-inch thick aluminum diagonals.
The trusses are joined together with 3/4-inch steel clevis pins through 2-inch OD steel fork end connections.
Fabricated by AWS certified welders in the USA.
Powder Coating available upon request in most colors.
Anodizing available upon request in select colors.
