All Spacer Plates for Track Hangers & Gridlocks can be supported from the 1/2" outside holes with chain or threaded rod.

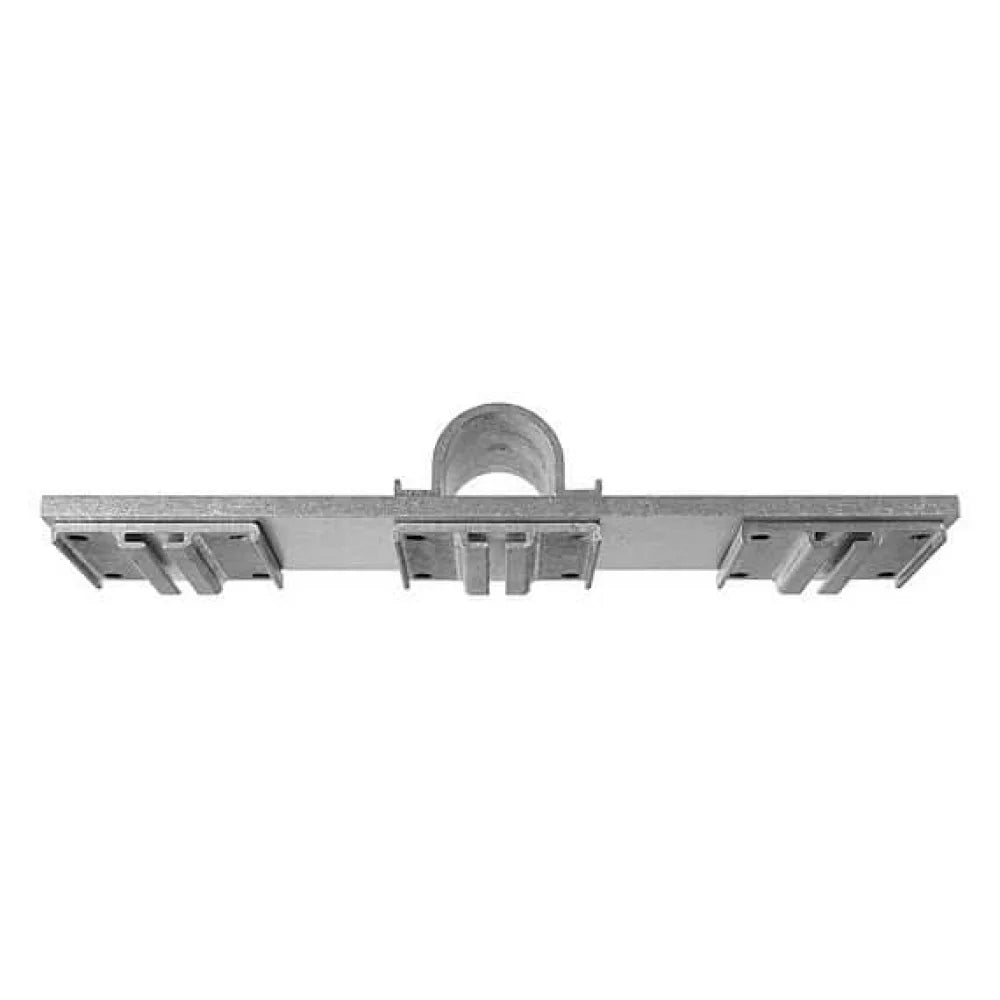

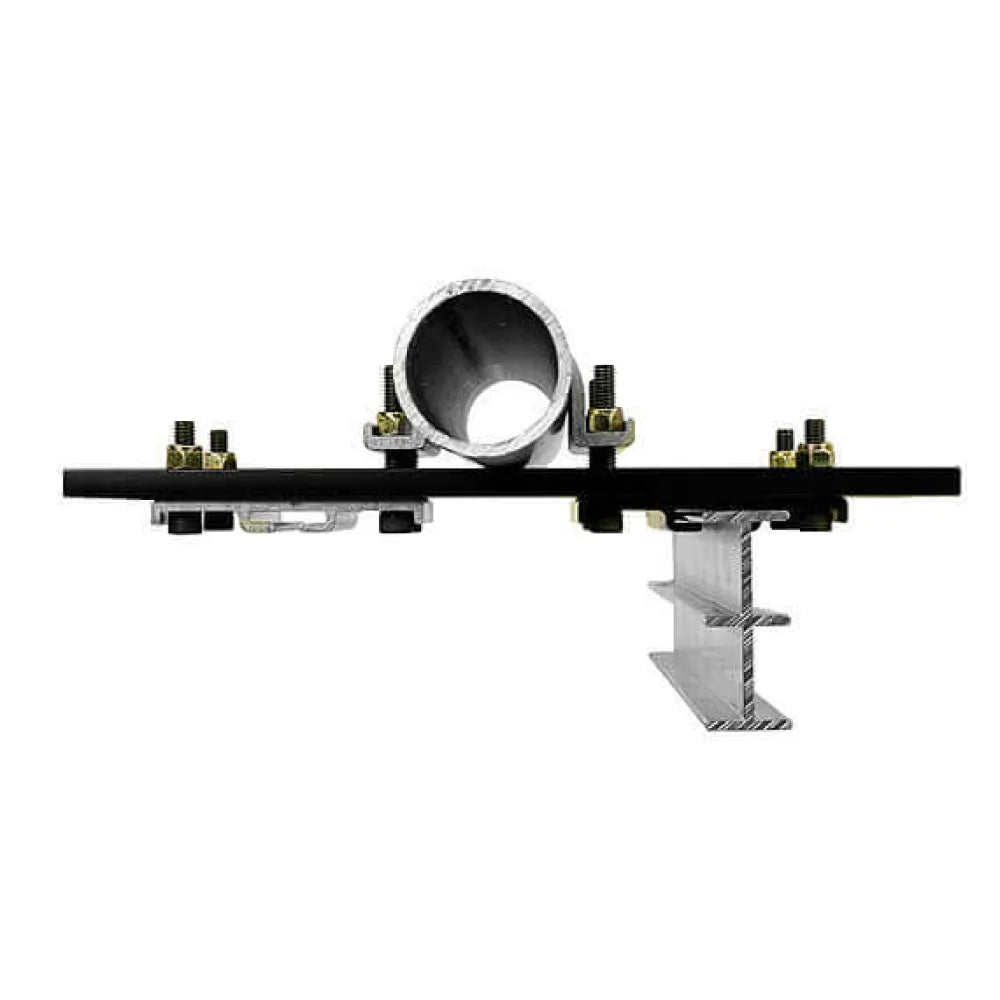

Only the 5.732 Double Spacer Place and the Triple Spacer Plate have hole spacing for a Mega-Gridlock to fasten on the top center. The Double Spacer Plate does not have the correct spacing for a gridlock on the top.

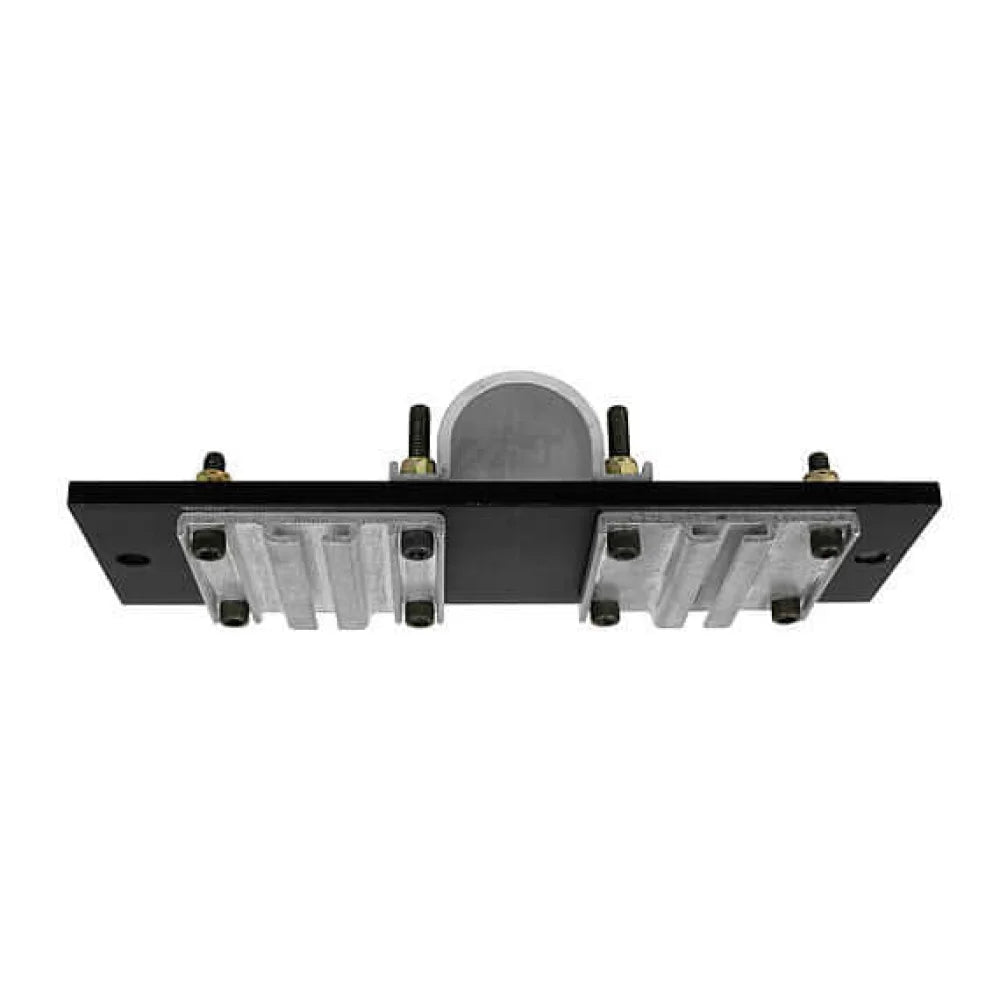

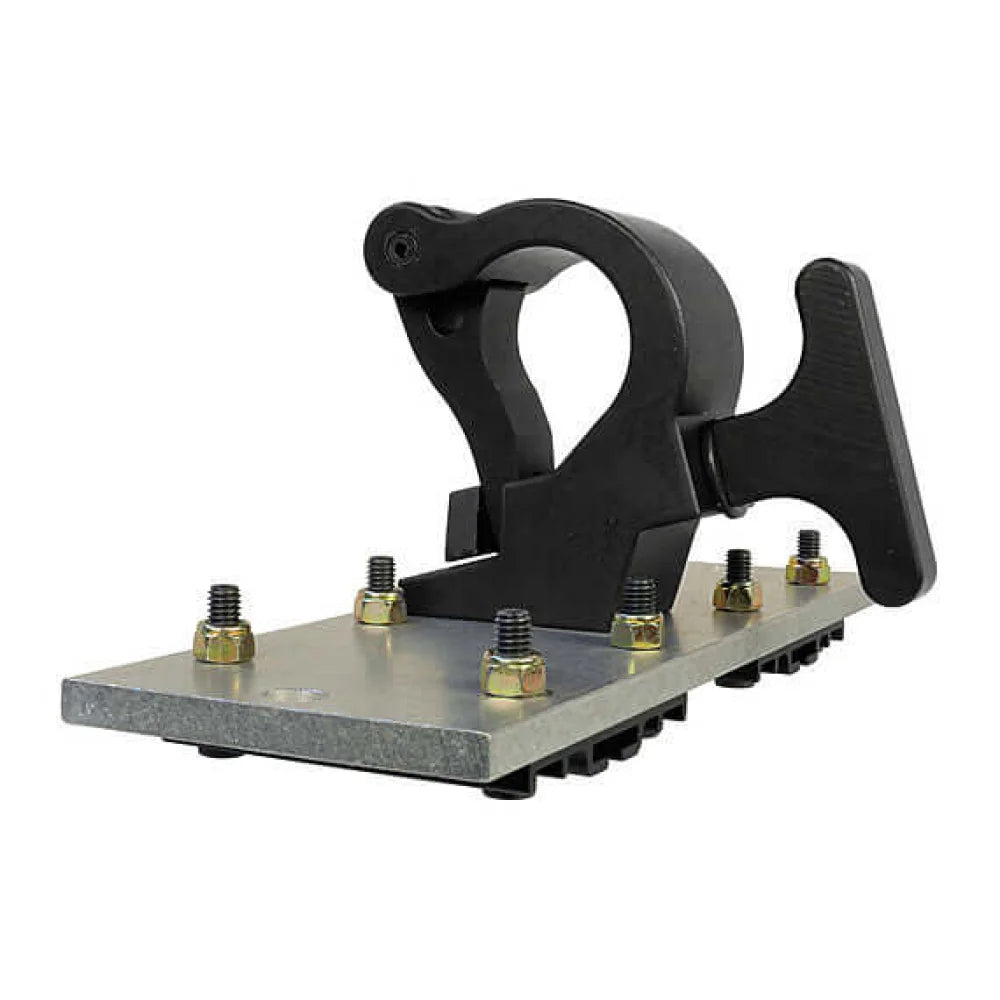

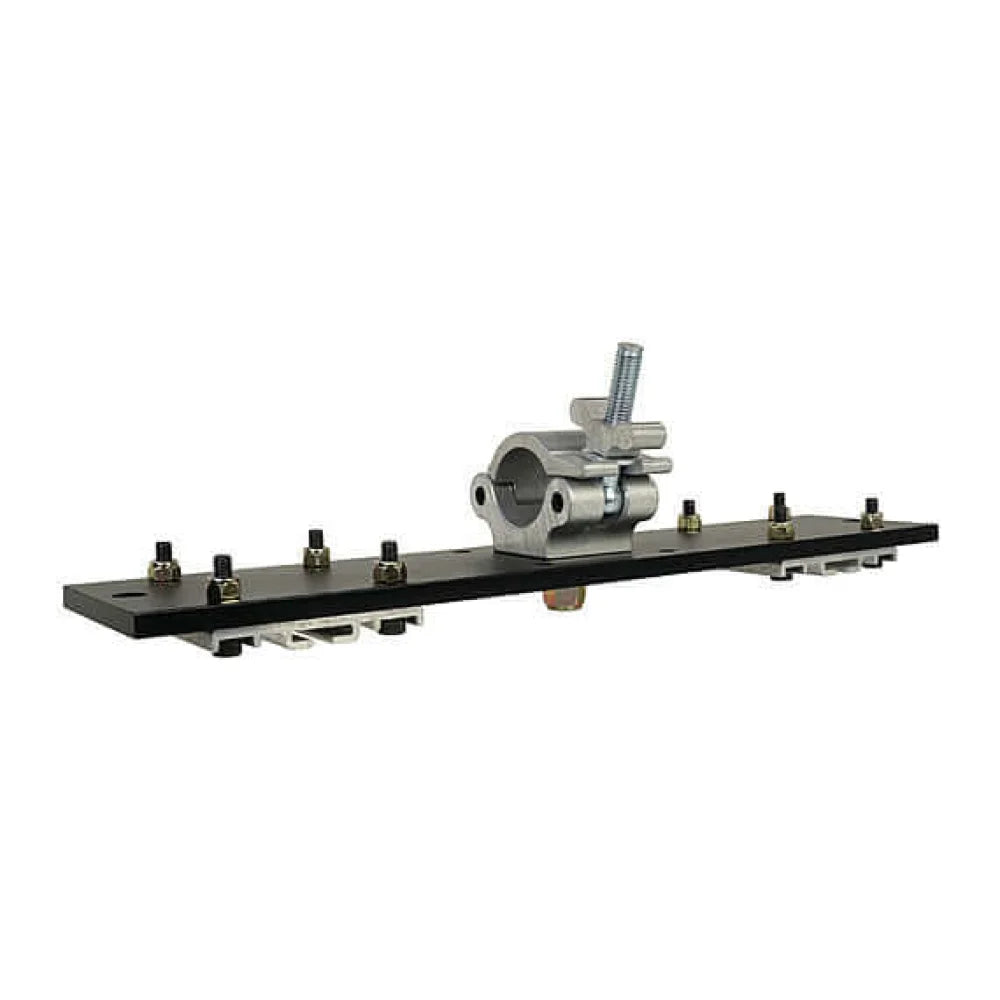

Both the Double and Triple Plates have 6" centers as well as center holes for a Mega-Coupler or a Mega-Claw.

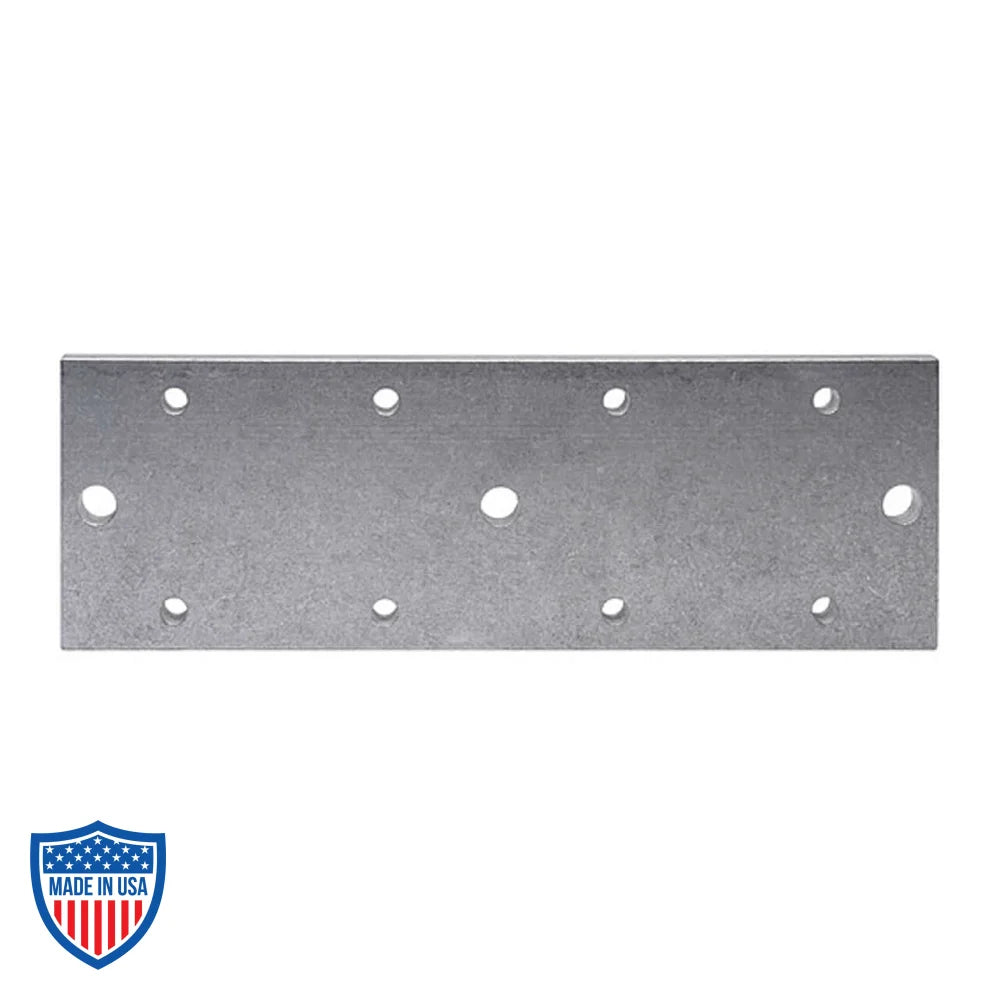

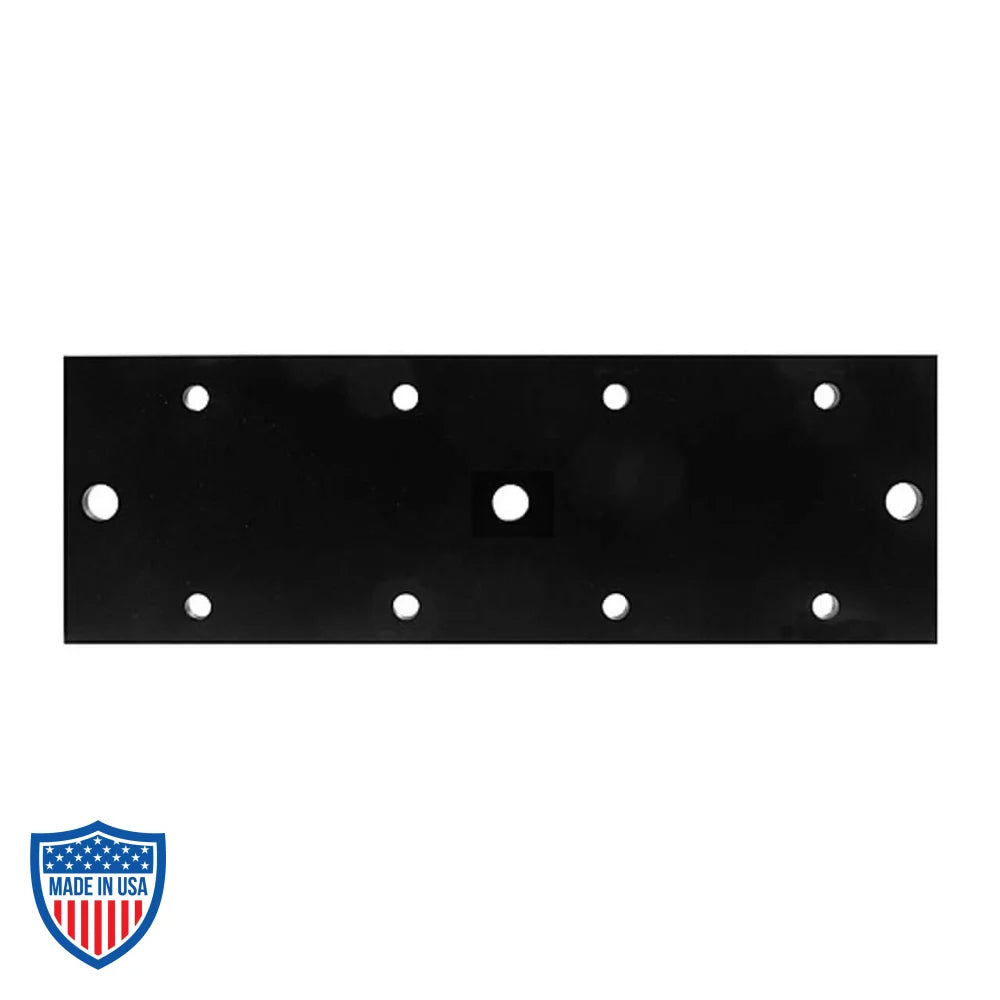

Double Spacer Plate Dimensions: 3/8-inch × 4-inch × 12-inch

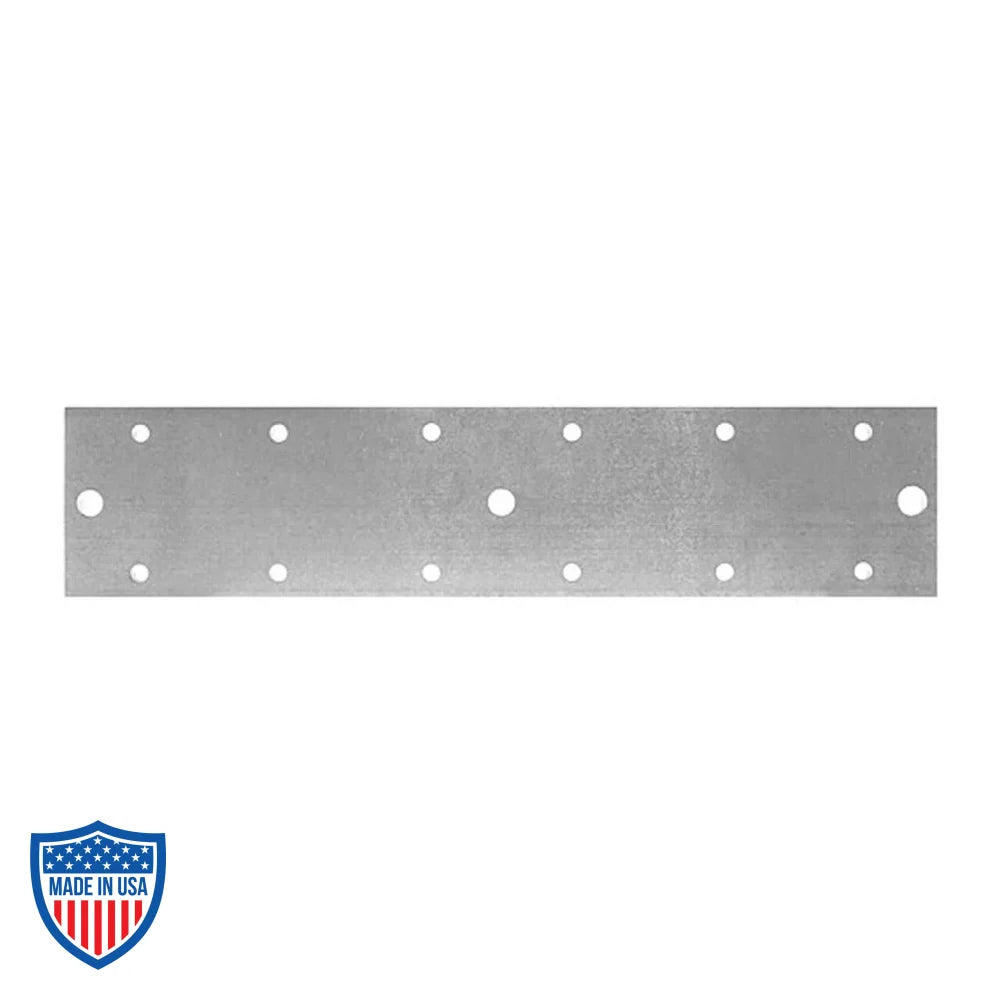

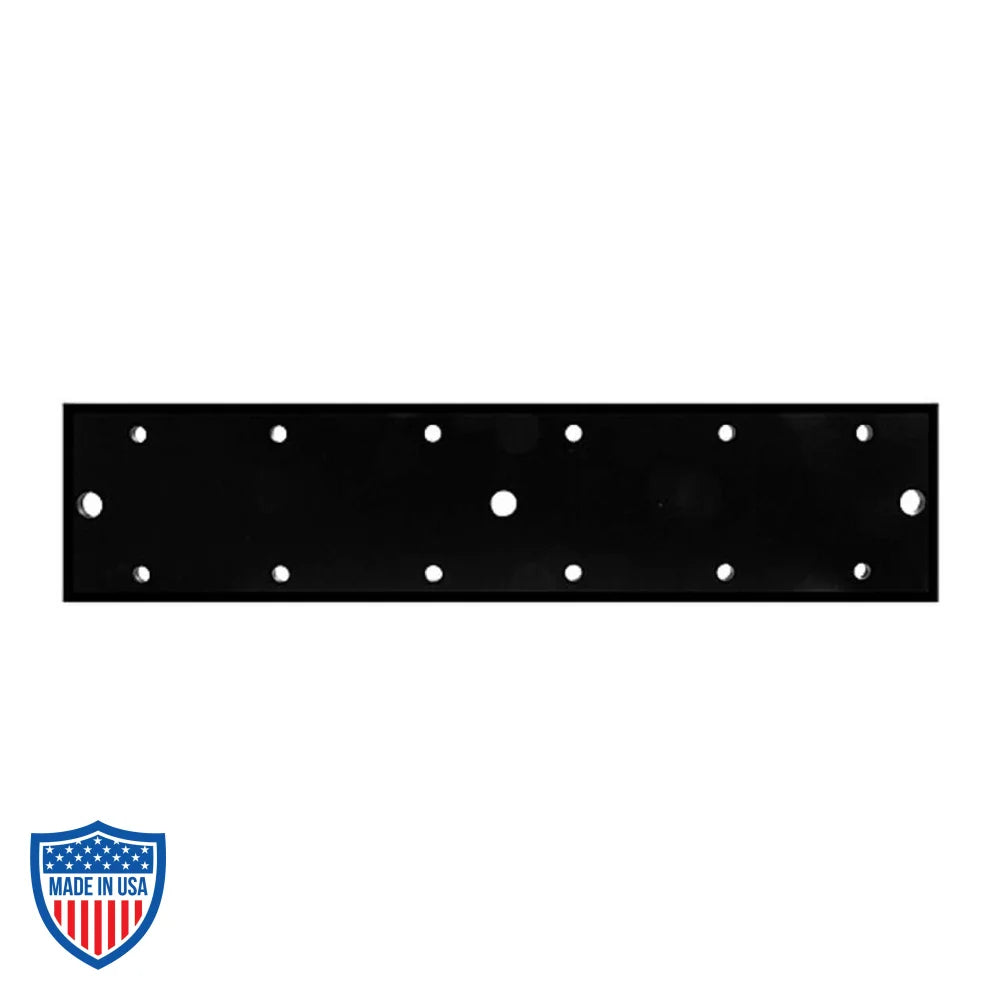

Triple Spacer Plate Dimensions: 3/8-inch × 4-inch × 18-inch
Track Hangers, Mega-Gridlocks, and hardware sold separately.
When purchasing hardware packs, the longer 2" bolts are required for attaching gridlock parts. The shorter 1 1/4" bolts work for attaching curtain track hangers to the Spacer Plates. Hardware Packs contain enough bolts and nuts for 6 parts.
See “Spare Parts” for pricing on optional items.
- Dimensions
-
3/8-inch × 4-inch × 18-inch Triple3/8-inch × 4-inch × 12-inch Double
- Weight
-
2.30 pounds - triple 1.70 pounds - double
