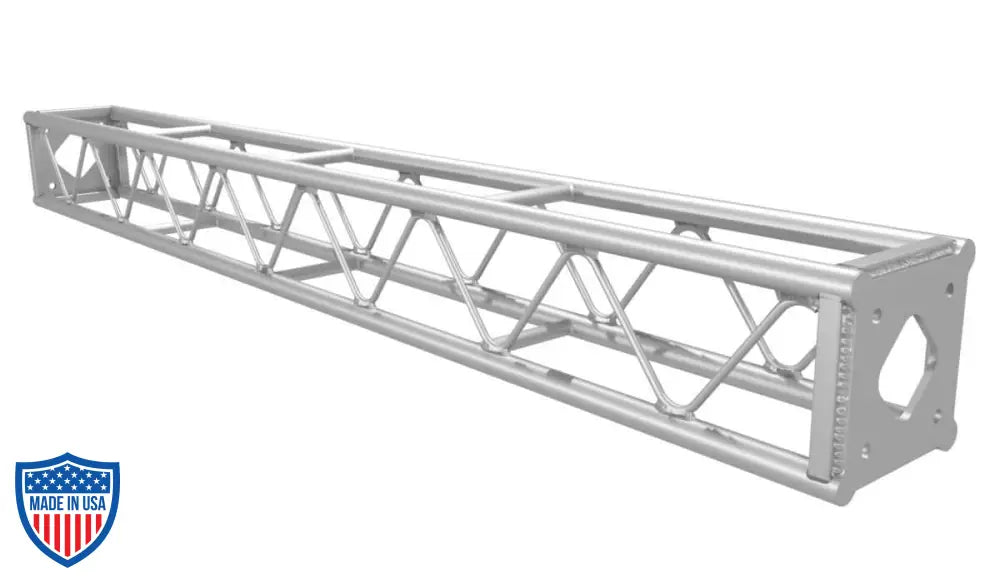

10-inch XLITE Square Truss comes in standard lengths of 2', 3', 4', 5', 6', 7', 8', 9', and 10' with custom lengths available upon request.
The chords are 1-1/2-inch diameter x 1/8” wall thickness
The diagonals are 7/16” diameter solid rod
The truss is connected using standard 5/8-inch diameter steel bolts
Fabricated by AWS certified welders in the USA
Powder Coating available upon request in most colors.
Anodizing available upon request in select colors.
